Lesson
UC10154 -- Exploring digital heritage -- Week 5

Draft, 05 September 2016
This page should be in a useful state, but still needs work before it's finished.


Analysing texts

Last week we looked at some possible sources of cultural heritage data, but data doesn’t just come via spreadsheets and APIs. This week we’re going to explore what happens when we treat text as data – when we take the familiar structures of words and documents and slice them up for further analysis.

But first…

Assessment 2 is due in a few weeks. Please check the Moodle page and make sure you understand what is required.

Some things to keep in mind:

  • Assessment 2 is just the proposal for you project, not the project itself! So I don’t expect you to have solved all the problems yet. What I’ll be looking for is evidence that you’ve put some careful thought into what the problems might be.

  • The project is not a test of your technical skill, it’s an opportunity for you to think creatively about how you might apply some of the tools and techniques we’ve been exploring. So don’t get too worried about the technical details.

We’ve already looked at a few tools that enable you to create interesting visualisations and analyses with little or no code. Over the coming weeks we’ll be seeing more examples. Think about what you might do with:

Setting up your own website or blog is also easy, using a free service like GitHub pages or a low-cost hosting service like Reclaim Hosting (which has a special deal for students).

We’ve already met one example of treating texts as data – my QueryPic tool. As I mentioned, QueryPic visualises searches in Trove’s digitised newspapers. To be honest, it’s not really analysing the contents of the newspapers directly. Instead it’s relying on Trove’s built-in search index. QueryPic shows you the number of articles per year containing a particular word or phrase. It doesn’t show you the number of times that word or phrase occurred in all those articles. But it’s still useful for examining changes in language and technology.

Here’s a recent example someone created comparing the use of ‘plumbago’ to ‘graphite’ – you can see a clear shift around the turn of the 20th century.

But as I warned in out first session – these sorts of visualisations aren’t arguments or proof, you need to remain sceptical.

Have a look at this QueryPic that explores when the Great War became World War I. Naturally enough, it shows that we only started talking about World War I sometime after World War II had started. However, if you hover over 1916 on the World War I line, you’ll see there are 108 matching newspaper articles. What’s going on? Is this evidence of time travel?

Click on the point to load results from Trove. Click on one of the results. Notice any references to ‘World War I’? Have a look at the user tags. You might find the odd OCR error, but most of those 108 articles are there because some helpful Trove user has tagged them with ‘World War I’ and Trove helpfully searches user tags and comments along with the text!

REMEMBER – DON’T TRUST SEARCH!

While QueryPic doesn’t let you explore the number of times words are used within articles, other tools such as Google’s Ngram viewer do.

What’s an n-gram? It’s a term from linguistics which usually refers to a series of consecutive words from a text, where ‘n’ represents the number of words. A single word is a 1-gram or unigram, a two word phrase is a 2-gram or bigram, three words gives you a trigram.

Google’s Ngram viewer has taken the content of millions of scanned books and split them up into 1, 2, 3, 4, and 5 grams. You can search on these words or phrases and view a visualisation of their frequency over time – much like QueryPic.

Try typing a few words or phrases and see what you can find. You can change the corpus (the collection of texts that are being searched) from the dropdown list – what difference does this make to your search?

One thing you might notice is that the Ngram viewer is case-sensitive. This may seem a bit annoying, but it allows you to look at interesting things like the usage of ‘aborigines’ versus ‘Aborigines’. When does the change in usage seem to take place? Can you think of any similar shifts in language you could test?

There are also a lot of advanced options that you can use, such as searching by parts of speech.

Note also that Ngram searches can be embedded in your blog or website like Plot.ly graphs.

But yet again – DON’T TRUST SEARCH!

Do what everyone does when playing around with something like this – search for rude words. In particular, search for ‘fuck’ from 1600 to 2000. It seems writers were much more liberal in their use of the f-word up until the beginning of the 19th century. It then almost disappeared until the second half of the twentieth century. But what are we actually seeing here? Read this article to find out.

People have pointed out a number of problems with the Ngram viewer – such as OCR quality and bad metadata. Just like QueryPic you have to remain sceptical of the results it offers – it’s an interesting place to start an investigation, but it doesn’t give you all the answers.

Bookworm.

Counting words

One way of analysing individual books or documents is by just treating them as a ‘bag of words’ – don’t worry too much about meanings or structures, just break them up into words and start counting the results. Strangely enough this often produces useful insights.

The Museum of Australian Democracy has a fun site that allows you to do some basic frequency analysis of election speeches. Try searching for a few terms or try their potted examples.

  • Who made the longest election speech?

  • Who is the only leader to have given a speech that was understandable to a 7th grader?

One great thing about this site is that they provide all of their texts for others to analyse! Click on the Download button near the bottom of the page to save a copy of all the speeches for later.

While we’re at it, let’s download some more political speeches. Over the weekend I havested 20,000 transcripts of speeches, interviews and press releases from Prime Ministers since World War 2. The transcripts are all searchable on the PM Transcripts site, but I thought it would be useful to make them available in bulk through my own repository. I’ve also aggregated the transcripts by PM. Let’s download the combined speeches of Julia Gillard. (If the file opens in the browser rather than downloading, just use File > Save Page As to save it to your computer.)

Databasic.io provide a simple tool called WordCounter for, you guessed it, counting words. It’s not terribly robust or configurable, but it’s a fun first attempt at dipping into the bag of words.

  • Go to WordCounter and click on upload a file.

  • Choose the Julia Gillard file you just downloaded and click on Count.

  • A word cloud will load, as well as a list of the most frequent words, bigrams, and trigrams. What can you see?

Ok, so it’s not very interesting or surprising that ‘Australia’ and ‘people’ figure prominently, but it’s notable that ‘work’ is the next most frequent word. In the trigrams we see the continuing importance of ‘the united states’ and perhaps an indication of PM Gillard’s rhetorical orientation in the frequent use of ‘for the future’.

The main problem with this simple tool is that there’s no way of hiding words like ‘Australia’ to reveal possibly more interesting patterns. The tool has filtered out many common words like ‘the’ and ‘and’ (these are known as ‘stop words’), but there’s no way of adding to this list of stop words.

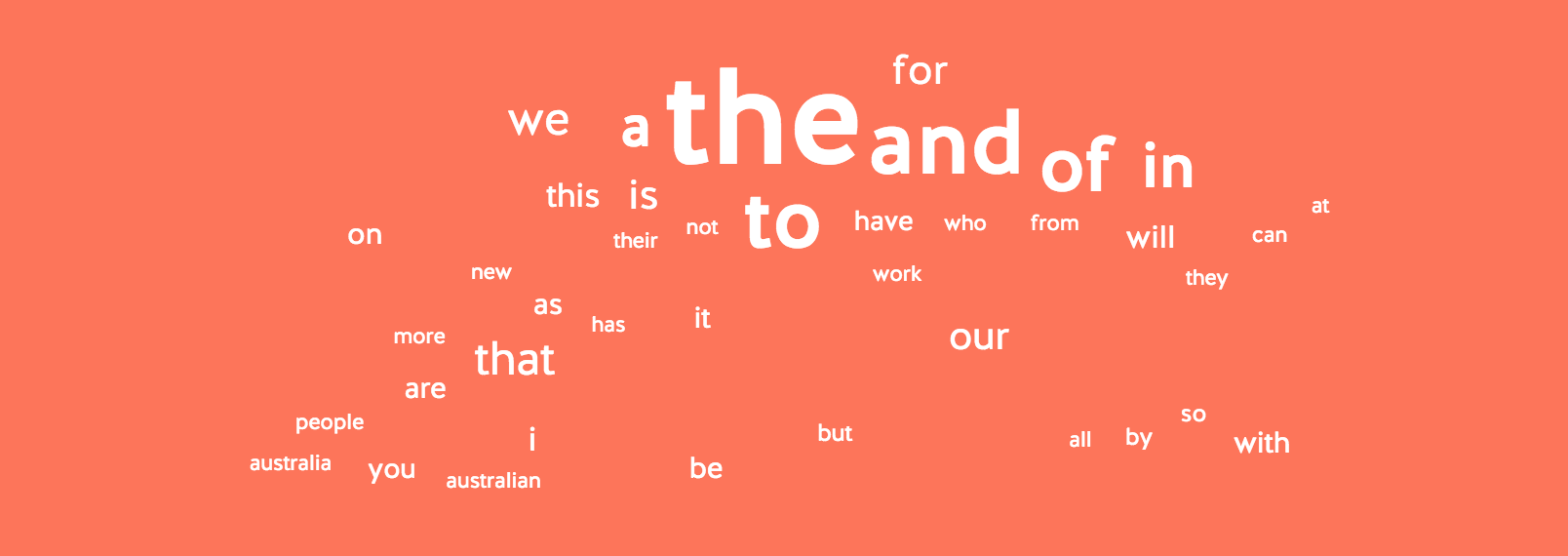

If you want to test the impact of stop words, try loading the speeches again, but this time uncheck the ignore stop words box.

Stop words

Voyant Tools is a powerful text analysis suite freely-available over the web. It provides a lot more options than the simple tools we’ve seen so far. Let’s have another look at Julia Gillard.

  • Go to Voyant Tools click on the Upload button and select the Julia Gillard file.

  • The Voyant dashboard will open with information about the most frequent words. But this is just the beginning.

Voyant is a great tool, but it can be a bit flaky at times. If the interface stops responding or behaves strangely just try reloading the page.

On the dashboard you’ll see a familiar looking word cloud. As in the WordCounter , ‘australia’ and ‘people’ dominate – but in Voyant we can change this.

  • Hover on the header bar above the word cloud – a series of icons will appear. Move your cursor over them to find the one that says ‘Define options for this tool’ and click on it. The Options box will open.

  • Look for the Stopwords setting and click on Edit List. A list of the most common stop words will open.

  • Hit return to move to a new line and type in ‘australia’.

  • Do the same for some of the other most common words such as ‘australians’, ‘australian’, and ‘people’. Click Save and then Confirm to apply your changes. What happens to the word cloud?

But did we really want to get rid of ‘people’? Just because it’s very common, doesn’t mean that it’s not interesting. In an analysis of gendered language we might want to compare use of ‘people’ and ‘men’ for example. Or we might want to compare against words like ‘citizens’. Once again, the choices we make to exclude or include can make a big difference to the patterns we see.

  • Feel free to add more terms to the stop words list. Once you’re happy with the word cloud, hover over the header bar again and click on the ‘Export a url’ icon.

  • Click Export to open your word cloud in its very own tab.

  • Try adjusting the Terms slider in the bottom left-hand corner. What happens?

Yep, this cloud, like ALL of Voyant’s tools can be embedded in your own website! Just click on the ‘Export a url’ icon, choose Export view, select the ‘HTML snippet’ option and click Export.

There are a lot of different tools and visualisations to play with in Voyant. Let’s try another one:

  • Hover over the header of you cloud and click the icon labelled ‘Click to choose another tool’.

  • From the dropdown box select Grid Tools > Contexts. This opens up the keywords in context tool.

  • This tool lets you browse the different contexts in which particular words or phrases are used.

  • You can change the selected term by using the input box in the bottom left-hand corner. Click on the down arrow in the input box to show the most frequent terms, select ‘future’. (If you want to look for another term, just type it in the box.)

  • You can now explore the different ways Julia Gillard spoke about the future.

Try playing around with some of the other tools. My current favourite is Bubble Lines!

There’s all sorts of clever things you can do with Voyant to make use of it in your own site. For example, I’ve built it in to my Historic Hansard site – just click on a link to automatically open a year of Hansard in Voyant. Check out the ‘Embedding Voyant Tools’ page in the help documentation for more possibilities.

Comparing texts

So we can use text analysis tools to explore a single document, but what about comparing miltiple texts?

Once again, Databasic.io offers a simple tools to get us started. This one’s called SameDiff.

  • If you haven’t already, unzip the file of election speeches we downloaded from MoAD.

  • Open up SameDiff and click on upload files.

  • Select two of the files from the election speeches folder and click Compare.

Note that at the top of the page you’ll see a ‘cosine similarity score’ that gives you an indication of the similarity of the language in the two files based on word frequencies.

Underneath you’ll see word clouds displaying the words that both documents have in common, as well as those that are only in one of the documents.

  • Let’s compare the speeches by Malcolm Turnbull and Bill Shorten from the recent election. Despite their political differences, these speeches are ‘kind of similar’ with a score of 0.61.

  • Now lets’s compare the earliest speech, by Edmund Barton, and the latest, by Malcolm Turnbull. These speeches are ‘completely different’ with a similarity score of just 0.19.

Unsurprising it seems that time has more of an impact on language than does political allegiance. But one thing that struck me in the Barton-Turnbull comparison is that the word ‘Australians’ only appears in Turnbull’s speech. Really? How was Barton addressing the people of Australia? That seems like something worth exploring further.

Let’s head back to Voyant to dig a bit deeper.

  • Open Voyant and click on Upload as before. Another cool thing about Voyant is that it can process a variety of different file types – even PDFs. In this case we can just upload the whole zip file of MoAD’s election speeches and it will unpack it and process the individual files.

  • Select the zip file and wait for the magic.

You’ll see that some things about the dashboard are a bit different. In particular, the summary pane in the bottom left-hand corner provides some useful comparative data. Look at the list of ‘Distinctive words’. These are words that are frequent in an individual speech, but much less so across the whole collection.

  • Go to the ‘Trends’ panel in the upper-right corner and open it in a new tab as you did with the word cloud earlier.

  • Type ‘australians’ in the input box and hit enter. We can now see how frequently the word ‘australians’ appears across the whole collection.

  • Mouseover the points on the graph to see which speeches contain the most/least references to ‘australians’. Do you notice anything interesting.

It seems that, in general, recent speeches talk more about ‘Australians’. I only just noticed this while preparing for this lesson and I’m now quite intrigued. This is what happens when you start exploring texts!

  • There are other ways we can compare the different speeches – try opening the Document Terms tool to compare the frequencies of different terms across the collection.

  • Once again, play around with some other tools. MicroSearch also gives a pretty nice visualisation of the occurrance of ‘australians’.

Another useful tool for comparing texts is Overview. This tool was developed primarily for use by journalists trying to make sense of large collections of documents (such as some of the recent ‘leaks’). It offers a powerful way of exploring clusters of similar documents.

Here’s a video that teaches you Overview in 90 seconds!

Learn Overview in 90 seconds from Jonathan Stray on Vimeo.

  • Go to Overview and sign up for an account.

  • Once your verified and logged in, click on the Upload files link from your dashboard.

  • Click on Add all files in a folder and select the unzipped folder of election speeches.

  • Click Done adding files and wait… It can take a while to upload and process the documents.

Once it’s done, you document set will open with yet another word cloud. Yay! But it’s really the ‘tree’ view that is most interesting.

  • Click on the Tree tab.

  • The tree view starts with a box representing all of the documents, and provides examples of some words that are common across the collection. As you move down the tree you’ll see it subdivides the collection into clusters based on the similarity of their language.

  • Click on the plus sign on one of the boxes in the bottom row. You can keep going through increasingly narrow clusters until you get to a single document.

  • What is similar about the documents? Try clicking on the big box in the second row. You’ll see the list of documents on the right hand side updates to include only those in the selected cluster.

  • Scan the list of documents in the selected cluster.

  • Now select the smaller box in the second row and scan the results. Can you see any interesting differences between the two clusters?

Once again it seems that time plays a big factor in the nature of our political language. The two clusters on the second row break down remarkably cleanly along temporal lines. The big cluster is pre-1980, the little one is post 1990, and the 1980s appear in both. What happened to our political language in the 1980s? Another question to explore at a later date!

Overview bases its similarity measures on a statistical measure called TF-IDF (Term Frequency / Inverse Document Frequency). Instead of just telling you how many times a word appears in a document, TF-IDF tells you how many times a word appears in one single document compared to a whole collection of documents. This gives us a measure of that word’s significance within the context of that document. A word that appears many times in a document, but only rarely across a collection, will receive a high TF-IDF value – it’s a marker of what’s different about that document.

I use TF-IDF quite a lot in my own work as a way of getting an understanding of what makes a document different from its peers. For example, In a word takes descriptions from current affairs programs broadcast on ABCRN and extracts the word with the highest TF-IDF value for each month and program. The result is a word that gives us a sense of what was ‘different’ about that month (at least according to the ABC). There’s more documentation about how I created it at the bottom of the page.

Another way of looking for clusters within collections of documents is a technique known as topic modelling. See this tutorial on the Programming Historian site for an introduction.

Extracting information

Let’s go back to Overview to see how we can extract additional information from texts.

  • Click on the Add View and click ‘Entities’.

  • You’ll see a list of names and places extracted from the speeches.

  • Check the ‘Geonames: countries’ box on the left hand side to limit the list to country names.

Just like that we have a list of the countries mentioned most often in Australian election speeches. Can you see anything interesting? Once again the influence of the USA seems prominent.

Overview uses a technique known as Named Entity Extraction (NER) to look for names of things within a text. NER is built into lots of different tools – it can be a bit hit and miss, as you’ll see when you scroll through the list, but it’s also pretty powerful. There’s even a Named Entity Extraction plugin for Open Refine.

Alchemy provides a number of (mostly paid) APIs for analysing texts. It’s fun to play around with their demo site. Feed it texts and see what you can find.
